Gastronomic Trailer 5.1M

ADDITIONAL INFORMATION

Trailer Purpose:

• Gastronomy

Trailer Side:

• Right or left

Drawbar:

• Removable

Wall Structure:

• Thermoactive sandwich panel, thickness 33 mm, external laminate coating, XPS core
• Load-bearing wall additionally reinforced with plywood
• Walls and roof covered with aluminum profiles

Floor:

• Waterproof plywood covered with high-wear PVC flooring

Frame:

• Steel, hot-dip galvanized

Doors:

• On the opposite side from the drawbar

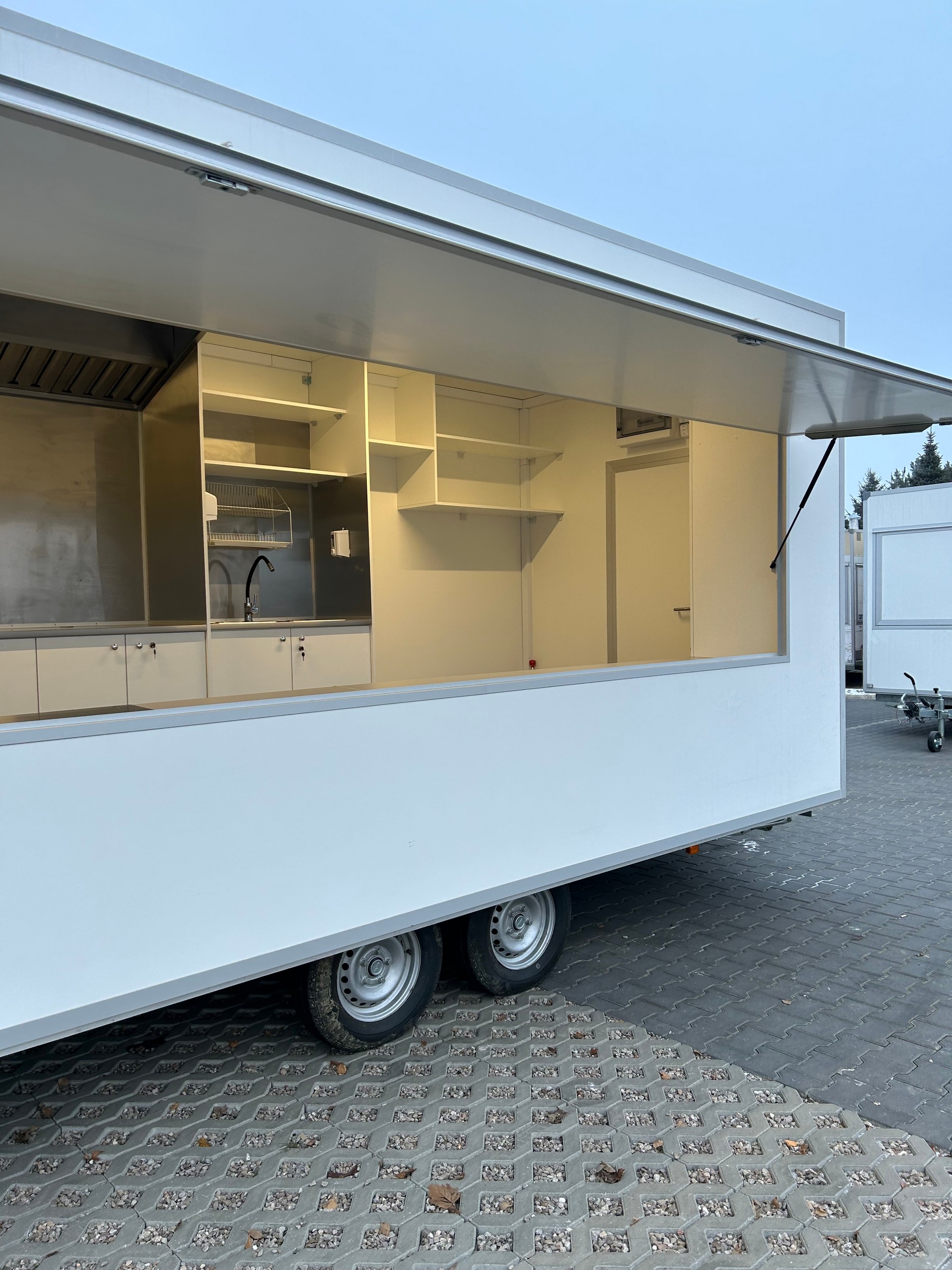

Sales Hatch:

• Front – 3000 mm x 1120 mm

Windows:

• Optional. Windows in aluminum frames with sliding panes.

Furniture Equipment:

• Furniture layout adapted to the salty concept in compliance with health regulations.
• Furniture made of laminated chipboard with increased density.
• Worktop protection with acid-resistant sheet metal.

Furniture:

• 4 recess cabinets
• Workwear storage cabinet – BHP
• 2 hanging cabinets
• Sink cabinet
• 2 drawers
• 8 shelves
• 3-meter worktop

Sheet Metal:

• High heat resistance acid-resistant sheet metal (worktop, sink, serving area, ceiling, and walls in the working area)

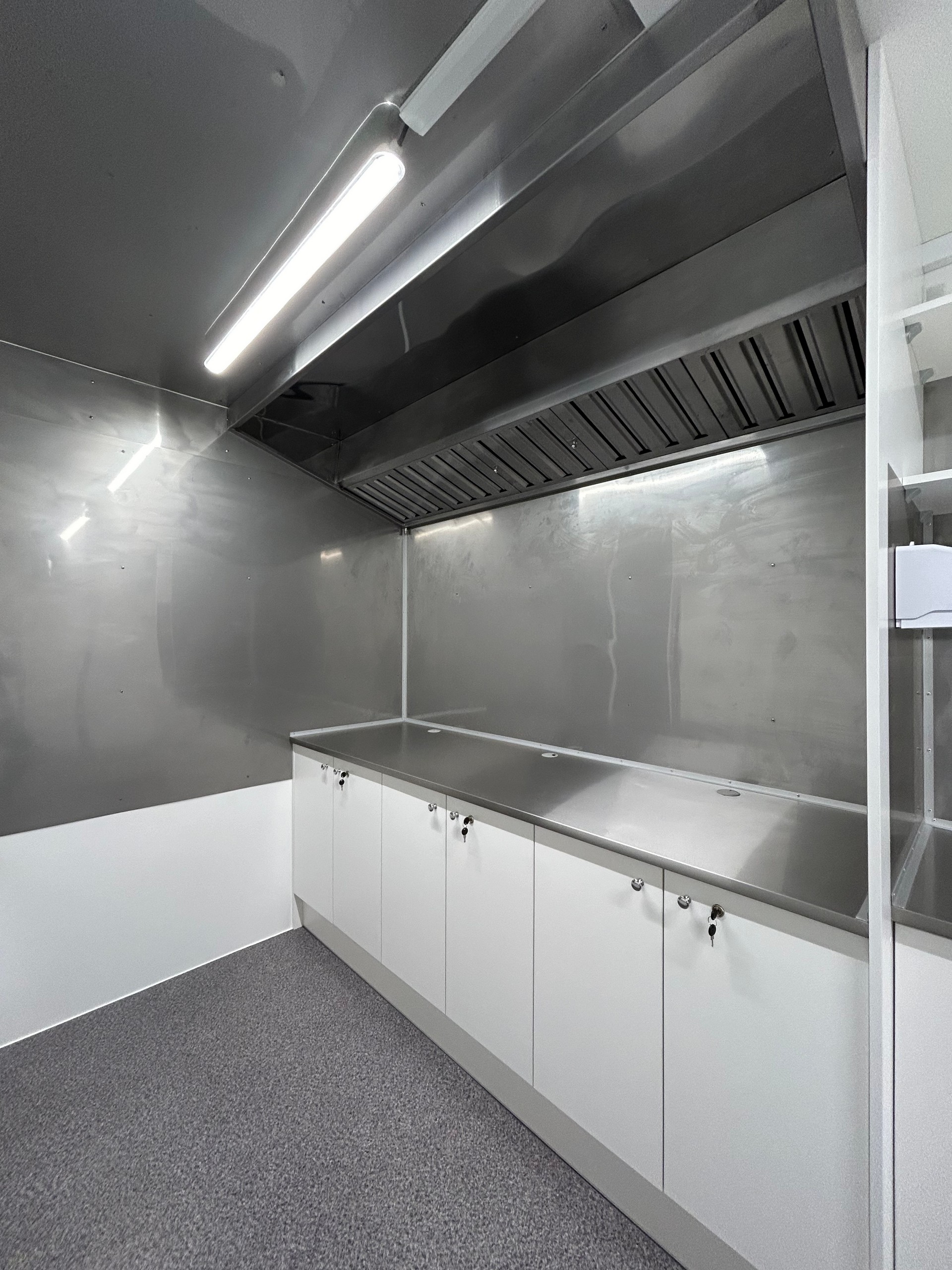

Exhaust Hood:

• 3-meter stainless steel exhaust hood above the worktop with lightweight structure
• Includes grease filters

Ventilation:

• 3 axial fans, FI200, 860m³/h

Plumbing (Closed or Open Water Circulation):

• 3-compartment sink
• 2 flexible spout faucets
• Hydraulic components
• Seaflo self-priming water pump, capacity: 3.8L/min
• Kospel electric water heater, IP24 protection rating
• Gray and clean water tanks

Electrical System:

• Electrical design in compliance with the requirements for operating food service and social points.
• External electrical box with power connection (32A plug)
• Internal electrical distribution box with fuses
• LED lighting inside the trailer or high-temperature lamps
• Monitoring system: 3 cameras, recorder, disk

Additional Features in the Trailer:

• Knott support wheel
• 4 stabilizing supports
• 19” support key
• Complete road lighting in compliance with the Traffic Code regulations

OPTIONALGastronomy Equipment:Trailer Branding:

• Composite panel façade (Dibond type)
• Façade – Print on polymer film, long-term, laminated with protective laminate to safeguard the print from damage and weather conditions.
• Wheel covers x 4
• Menu in a lightbox (optional LED lighting)
• Logo: flat on PVC / in a lightbox with LED lighting
• LED sign on the roof with a substructure, foldable for transport.
