Gastronomic Trailer KEBAB 5.1M

Price: please contact our sales department.

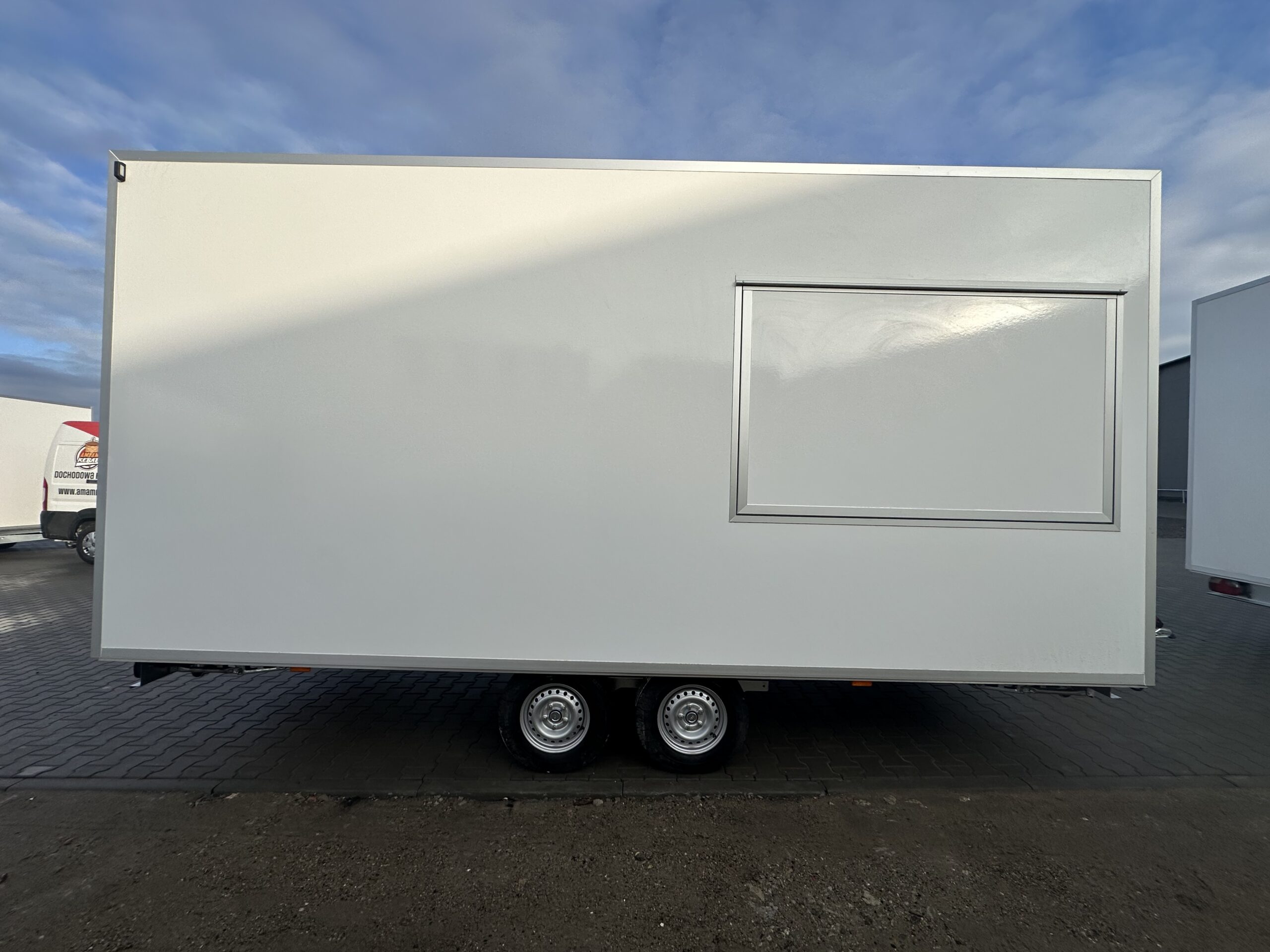

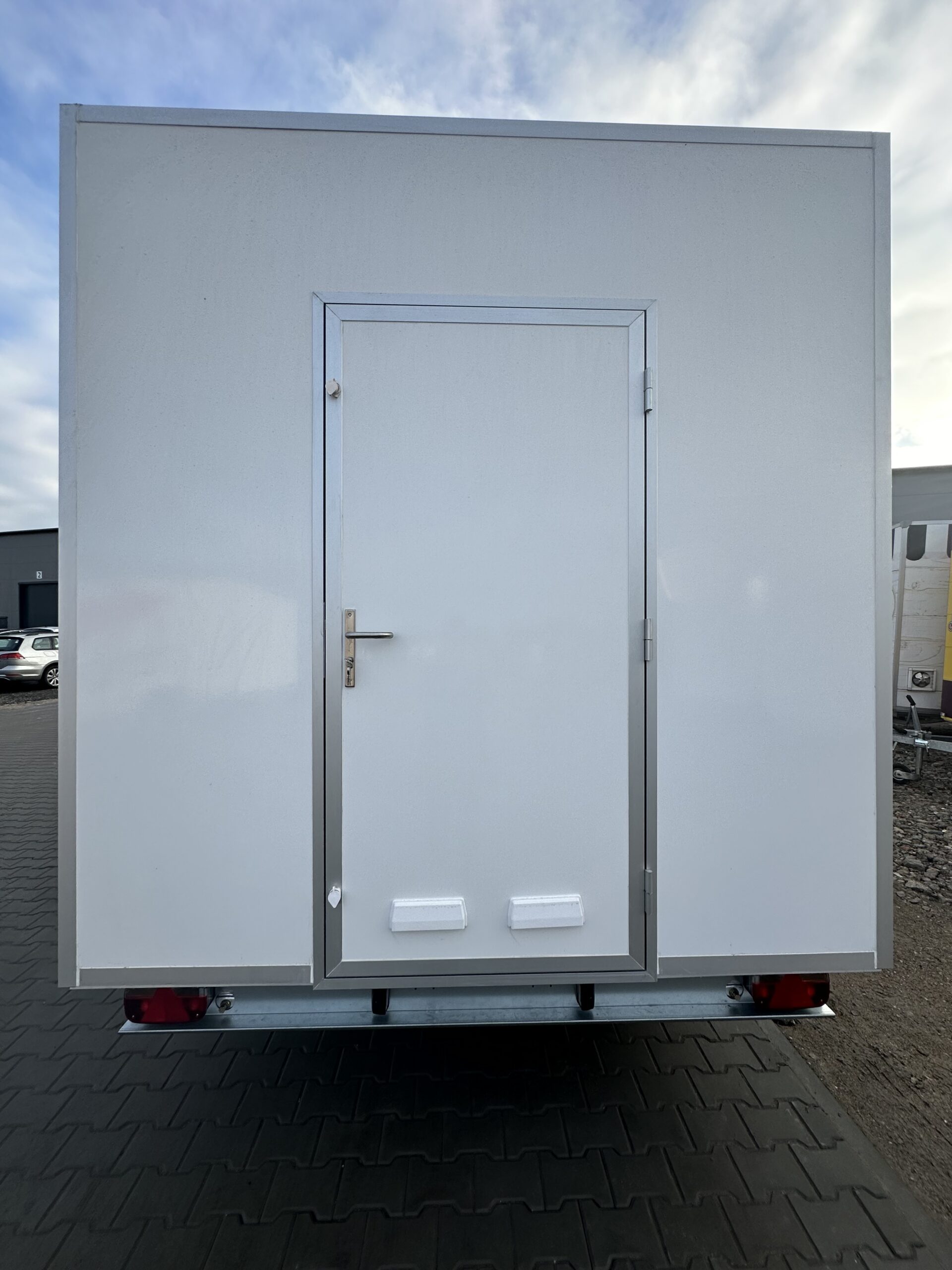

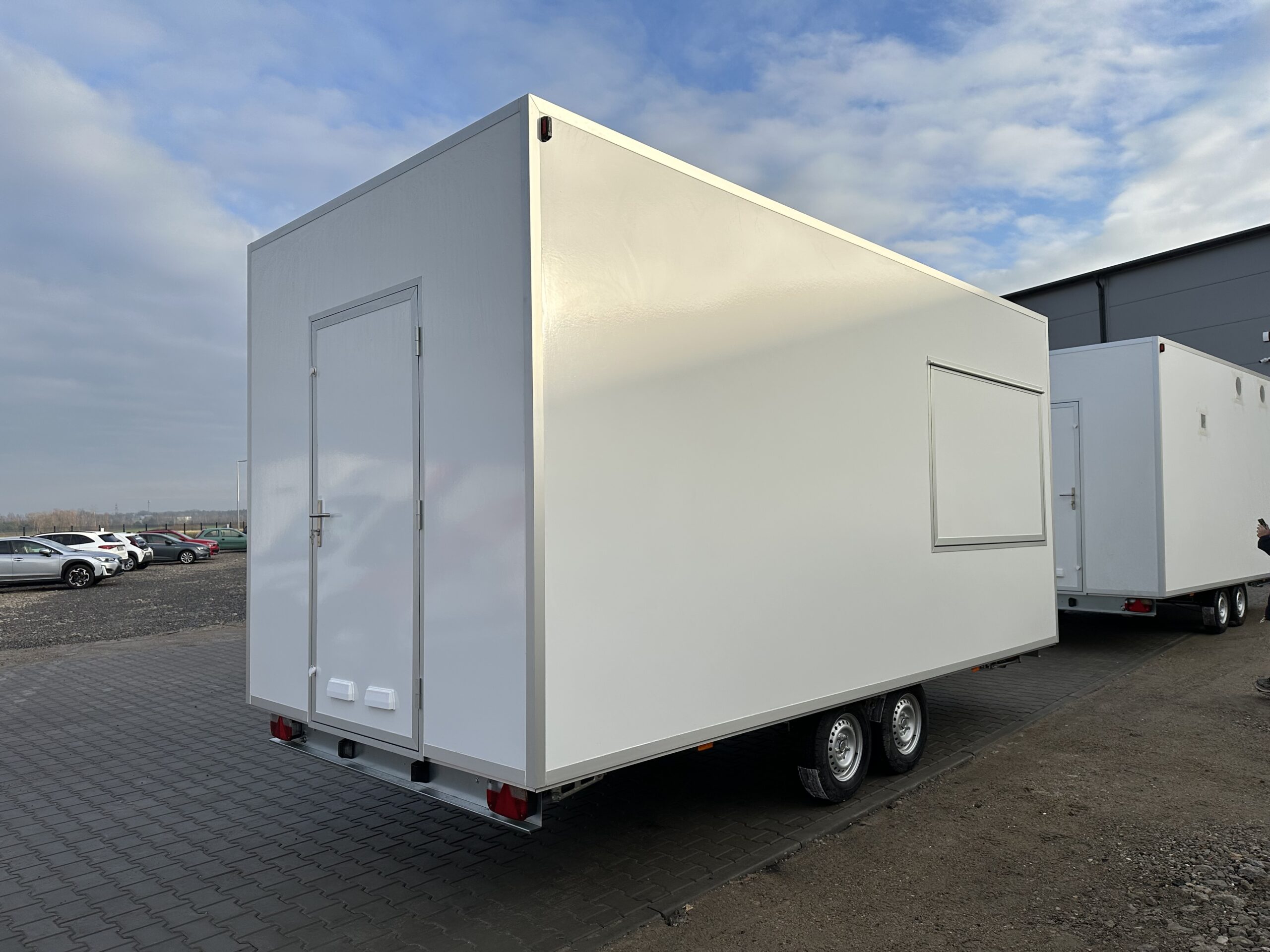

Technical data
Vehicle Identification Number (VIN):
Length: 5100mm
Width: 2330mm
Height: 2300mm
Overall dimensions:
Length: 6500mm
Width: 2500mm
Height: 3000mm
Unladen weight:
Permissible total weight: 2700kg
Unladen weight without furniture: 1350kg
Payload: 1350kg
Number of axles:
2 Knott braked axles
Wheels:
195/50R13C

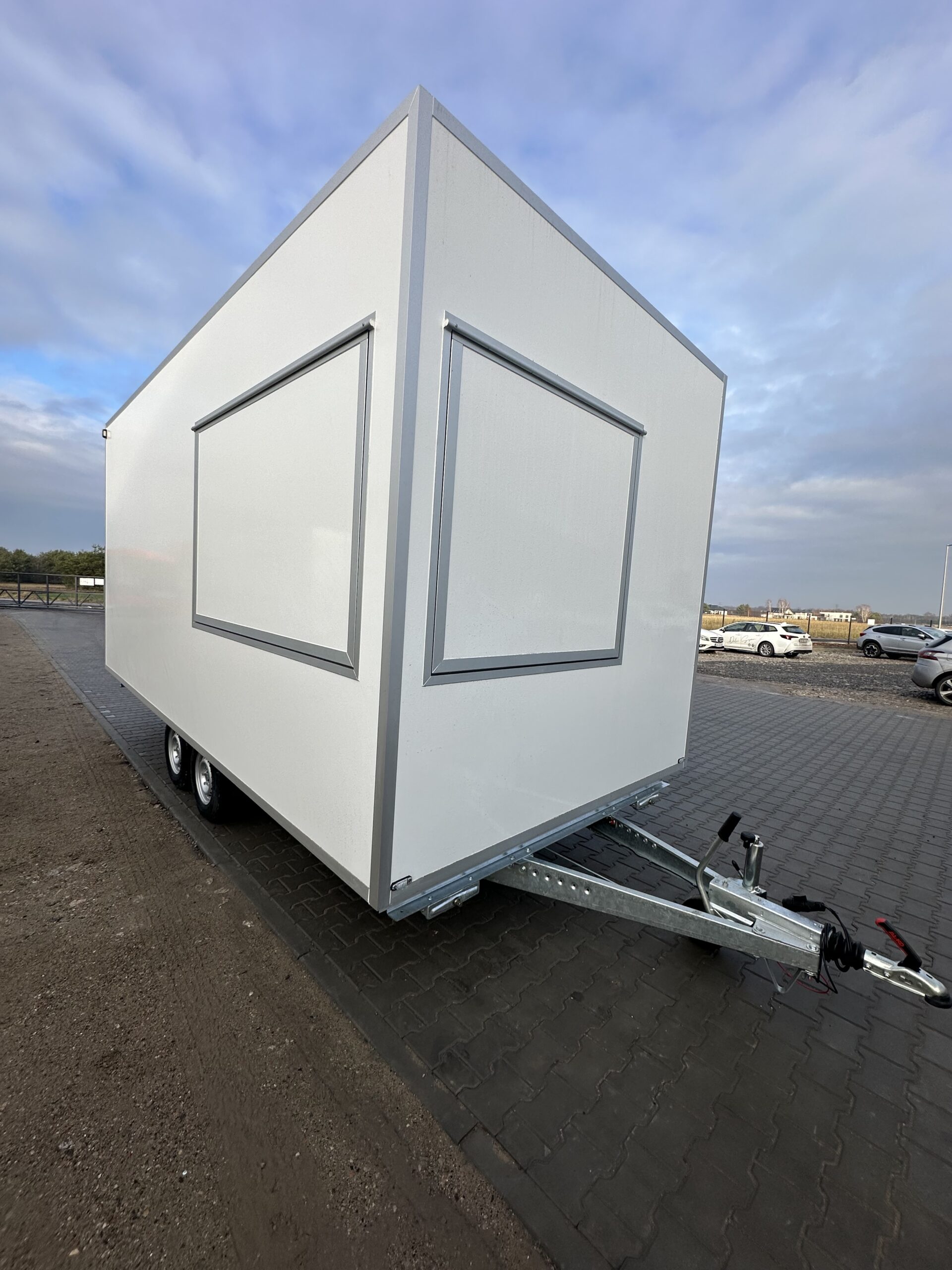

Window:
1 at the front, 1 at the drawbar. Windows with aluminum frame

Ask about price

Provide your details for which you would like to receive the price of the trailer

ADDITIONAL INFORMATION

Wall Structure:

Sandwich panel with a thickness of 33mm, outer coating laminate, XPS core

Load-bearing wall additionally reinforced with plywood

Floor:

Waterproof plywood covered with PVC flooring with increased abrasion resistance

Frame:

Steel, hot-dip galvanized

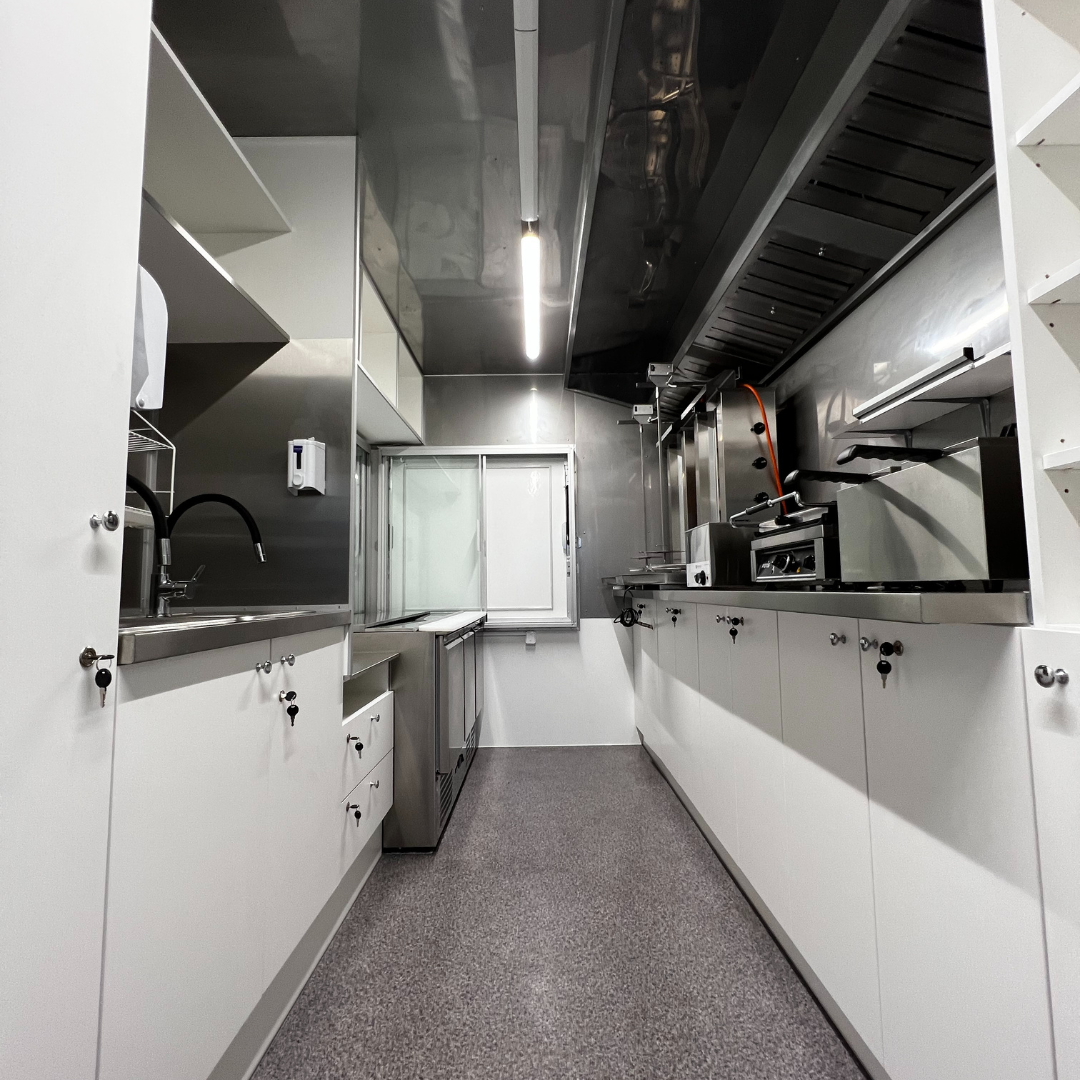

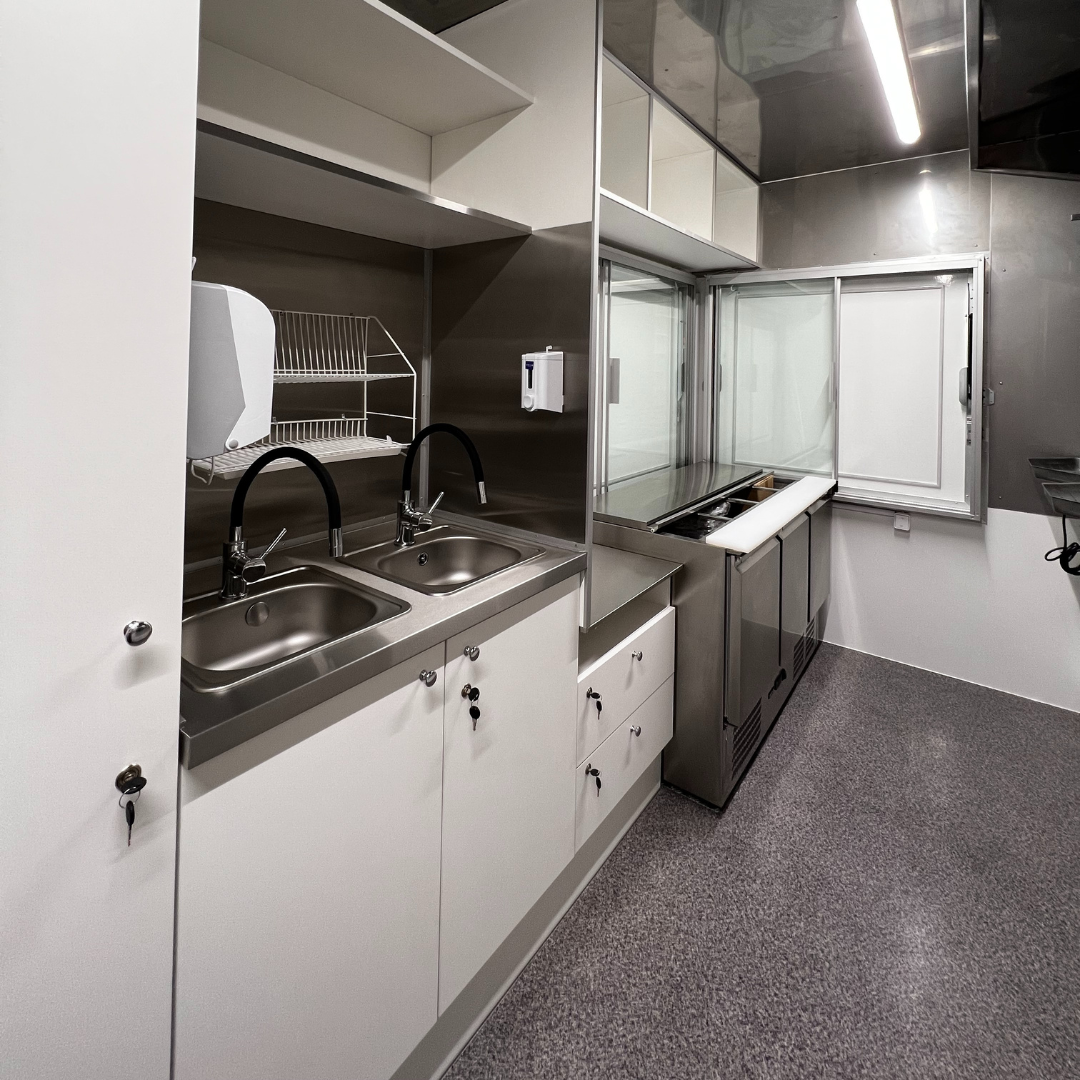

Furniture Equipment:

  • Built-in cabinets, 4 pcs
  • Wardrobe cabinet
  • Hanging cabinets, 2 pcs
  • Sink cabinet
  • Drawers, 2 pcs
  • Shelves, 8 pcs
  • Worktop, 3 m
  • Furniture made of high-density chipboard

Sheet Metal:

  • Heat-resistant stainless steel (worktop, sink, serving counter, ceiling, and walls in the work area)

Hood:

  • Hood, 3 m above the worktop, made of lightweight stainless steel
  • Plus grease filters

Ventilation:

  • Axial fan FI200, 860 m³/h, 3 pcs

Plumbing:

  • Three-compartment sink
  • Faucet with flexible spout
  • Plumbing parts
  • Self-priming pressure water pump Seaflo, Capacity: 3.8 L/min
  • Electric water heater Kospel, protection rating IP24

Electrical:

  • External electrical box with power connection (32A Coupling)
  • Internal electrical distribution box with fuses
  • Main switch 63A
  • ORNO meter
  • Residual current protection 40A, 2 pcs
  • Fuse B10
  • Fuse B16, 6 pcs
  • Fuse B20, 4 pcs
  • Fuse C16
  • Potentiometer (speed controller), 3 pcs
  • Double switch
  • Single switch, 2 pcs
  • Single socket
  • Double sockets, 10 pcs
  • External socket IP65, 1 pc
  • High-temperature lamp, 2 pcs
  • Power supply GTV LD-ZASPRO54W-30, 1 pc
  • Power supply GLP GPV-60-12, 2 pcs
  • Lightbox with LED lighting
  • Camera BCS 5MP wide-angle, 2 pcs
  • Power supply for camera 12V, 2 pcs
  • BCS recorder plus 1TB hard drive

Additionally in the trailer:

  • Knott support wheel
  • Stabilizing supports, 4 pcs
  • Support key 19’
  • Facade made of Lyx Bond (Dibond) composite panels

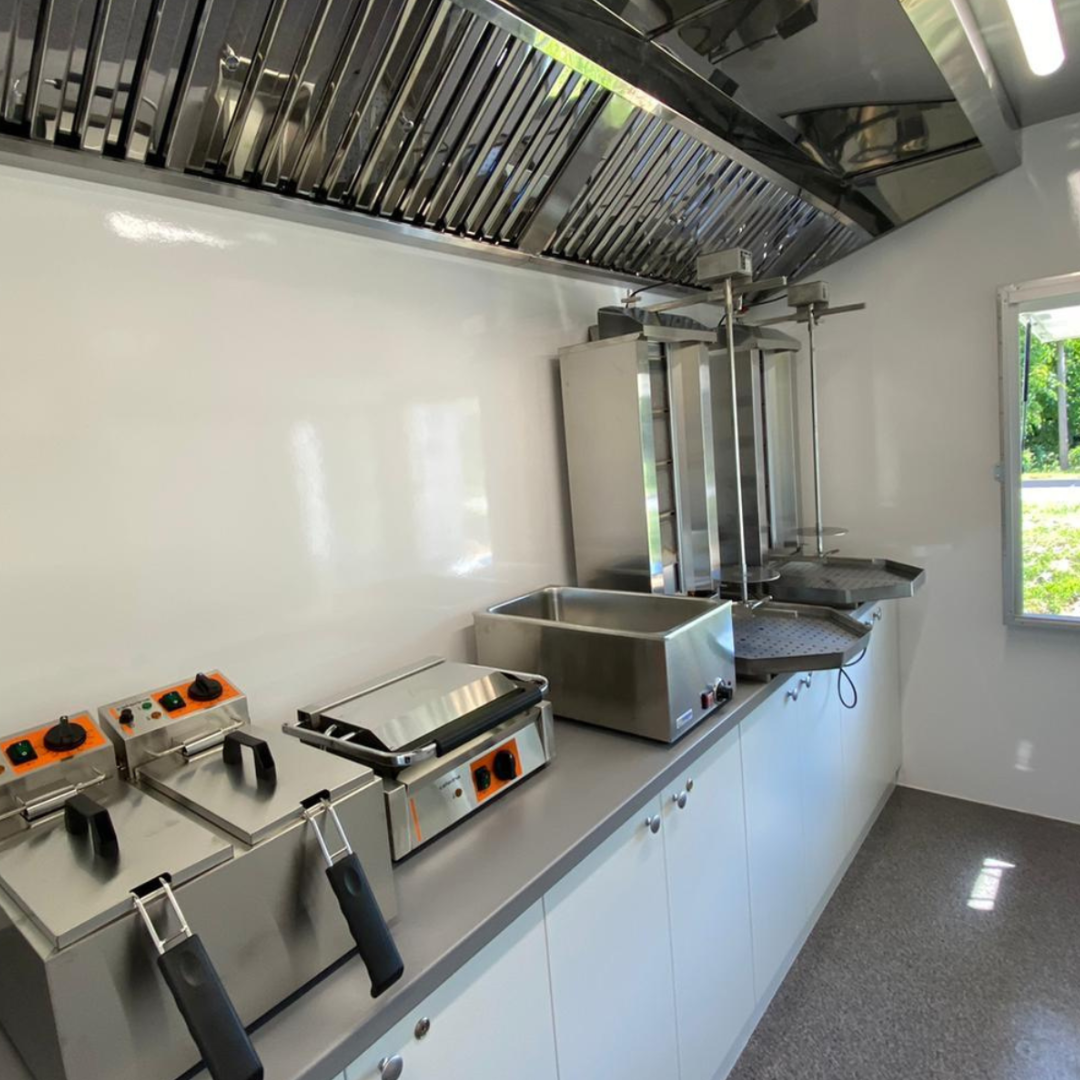

Machines:

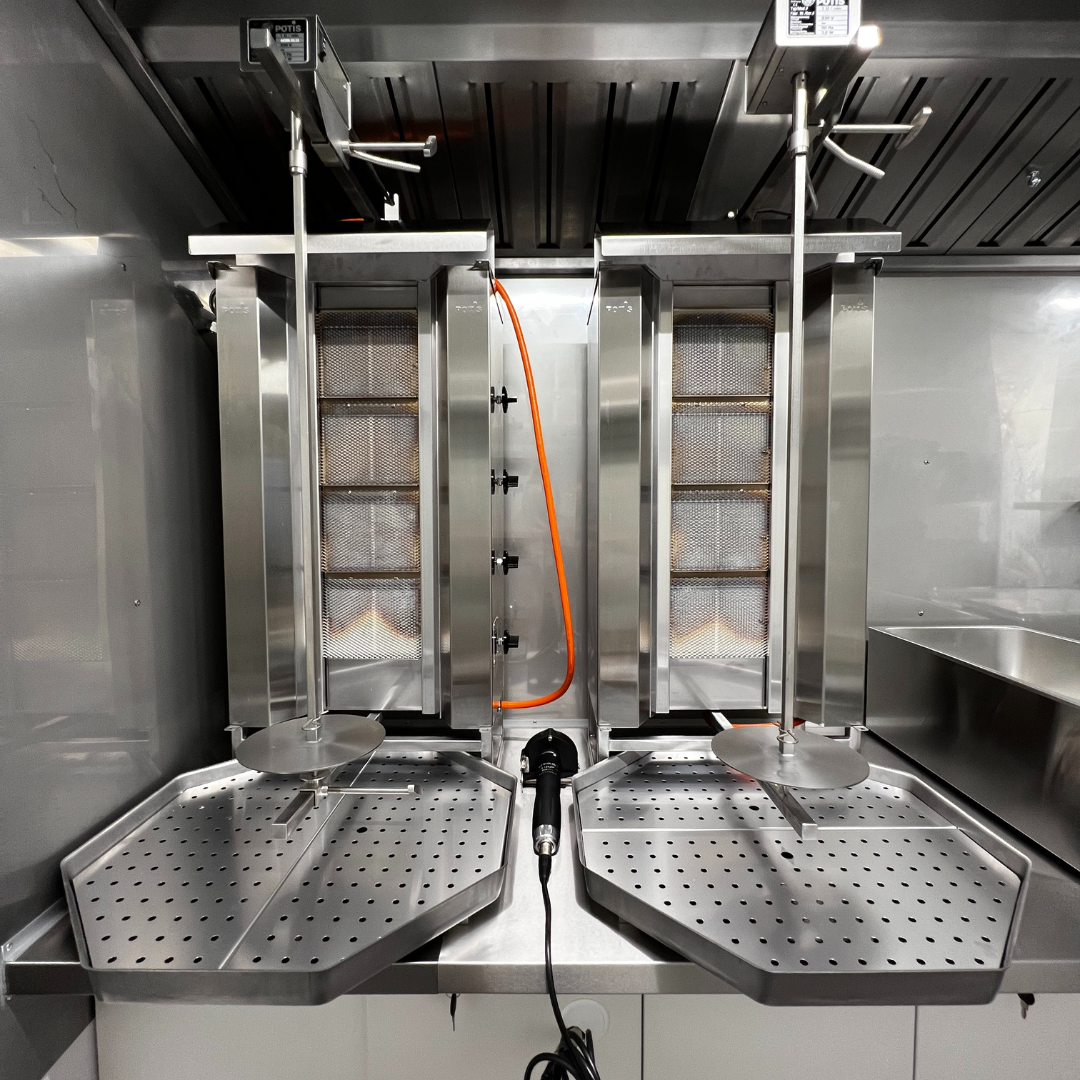

  • Meat grill Potis GD4, 2 pcs
  • Ribbed contact grill, POTIS PK 2745
  • Cooling display MAX MPM
  • Bain-marie with tap for GN 1/1 containers and H 150 mm Stalgast
  • Fryer 2x5L Yato

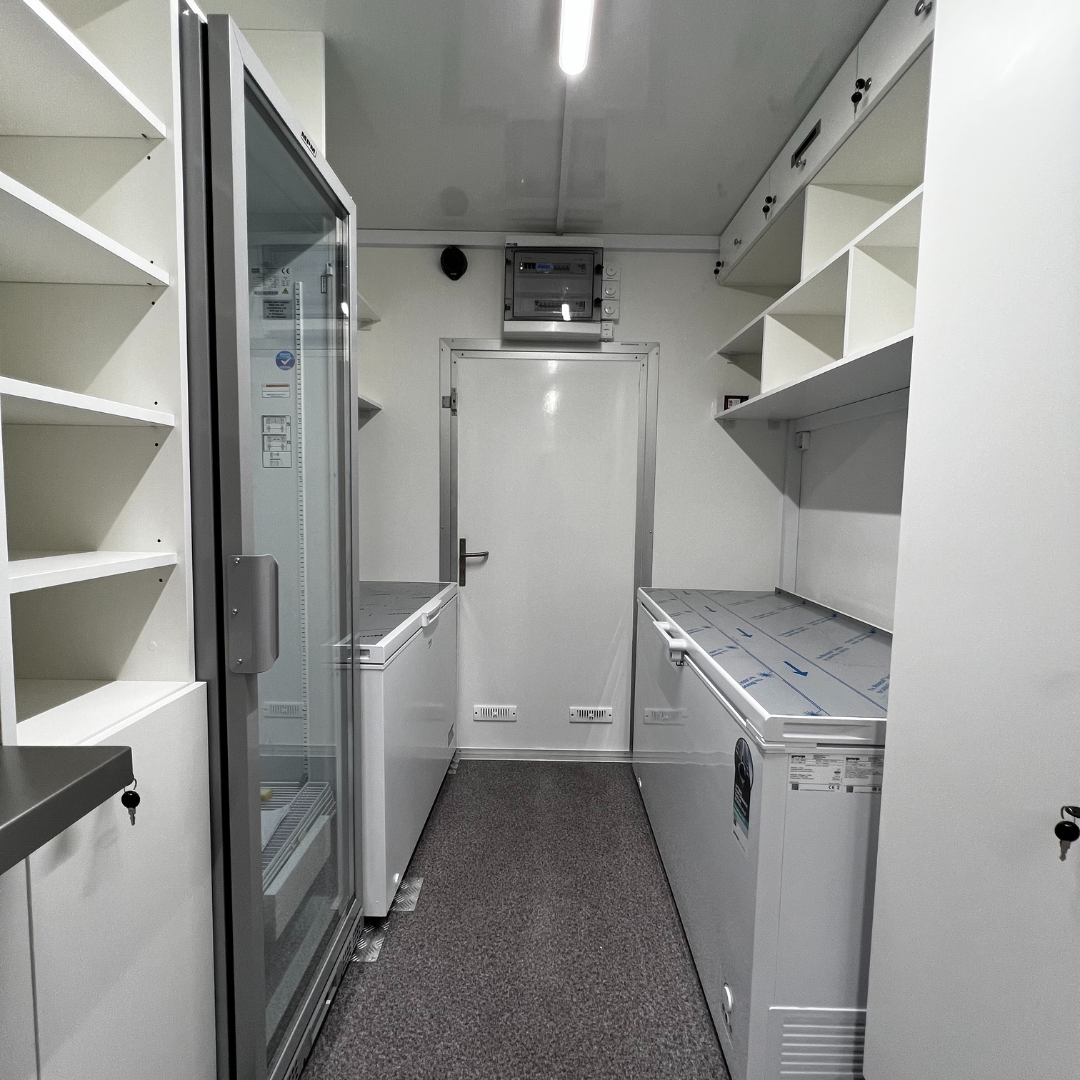

  • Large chest freezer MPM 469L
  • Small chest freezer Beko 298L
  • Salad bar with 3 doors and stainless steel top Stalgast 368L
